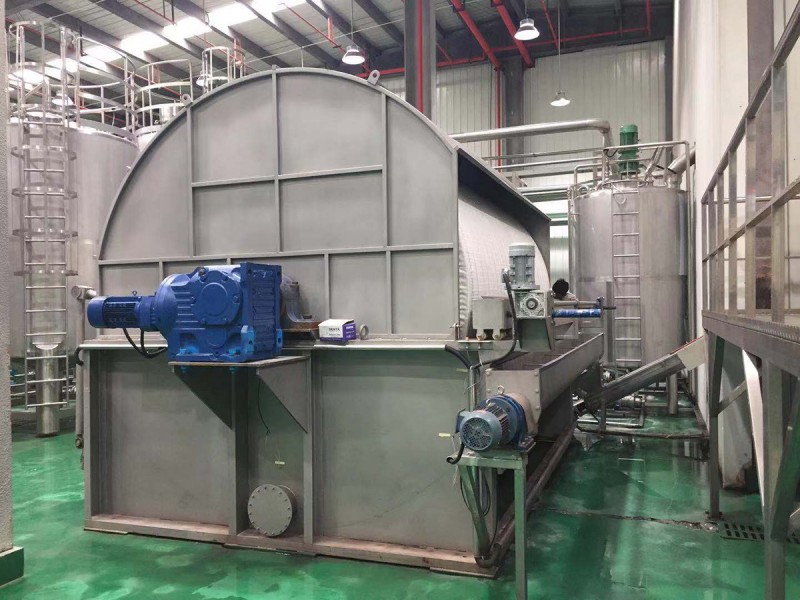

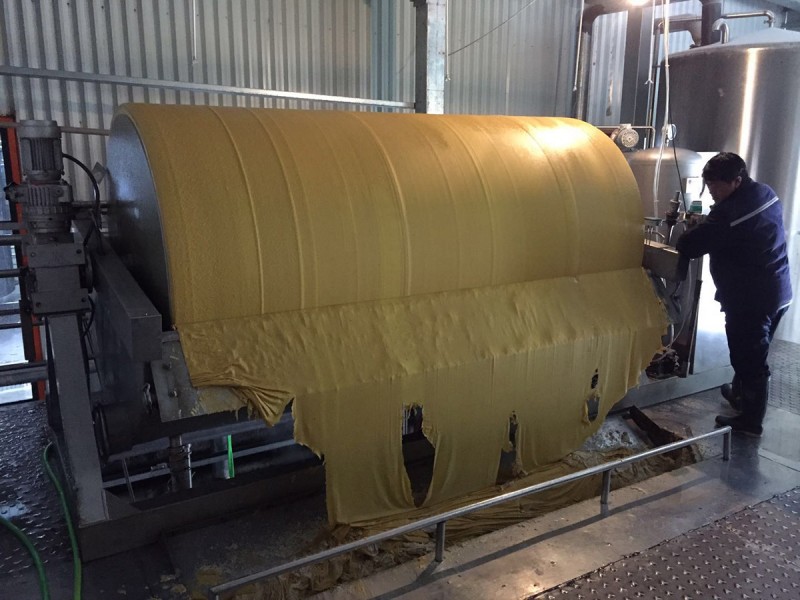

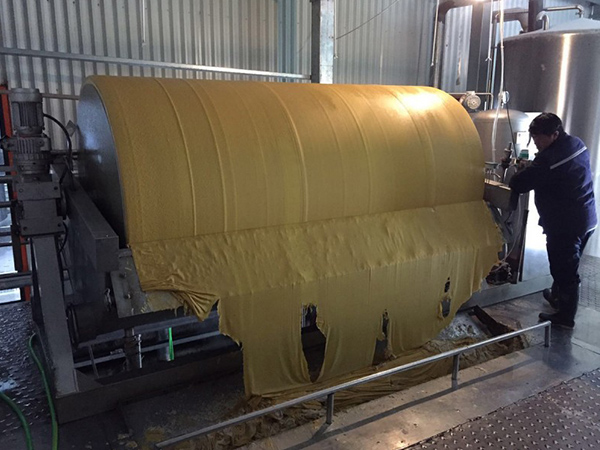

The vacuum drum filter is suitable for filtering suspension with moderate solid phase concentration and specific gravity and uniform particle size.
Main parameter:
Model | Filter area | Drum diameter | Drum Width | Durm rotational speed | Transmission power | External dimension | Machine weight |
M2 | mm | mm | R/min | kw | (L*W*H) mm | kg | |
G2/1 | 2 | 1000 | 700 | 0.1-2 | 1.1 | 1340x1700x1300 | 960 |
G5/1.6 | 5 | 1600 | 1040 | 0.1-2 | 1.5 | 1920x2350 x1340 | 3200 |
G10/1.85 | 10 | 1850 | 1780 | 0.1-1.8 | 2.2 | 2760x2650x2150 | 4240 |
G20/2.35 | 20 | 2350 | 2770 | 0.1-1.8 | 3.0 | 3850x3150x2650 | 5950 |
G30/2.64 | 30 | 2640 | 3680 | 0.1-1.5 | 4.0 | 4800x4380x2940 | 8420 |
G40/3.17 | 40 | 3170 | 4060 | 0.1-1.5 | 5.5 | 5170x5280x3470 | 11200 |
G45/3.17 | 45 | 3170 | 4580 | 0.1-1.5 | 5.5 | 5750x5380x3470 | 11600 |
G60/3.43 | 60 | 3430 | 5630 | 0.1-1.2 | 7.5 | 7090x6430 x3730 | 14800 |
